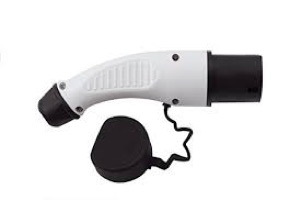

The plug is designed for use in EV charging cables and will plug into any compatible, Type 2, EVSE.  It is the MALE side of the connection and so has PINS not SLEEVES (see photo).  A plug, pre-attached to suitably rated cable, may be ordered here.


If you want a single phase 16A or 32A plug then order the ‘1P S’ option (L2 & L3 pins will be missing and blanks provided), if you want a 3 phase 16A one then order the ‘3P S’ option. Lastly, f you want a 32A 3P plug then order the ‘3P L’ option.  The only difference between ‘S’ and ‘L’ plug bodies is the size of the cable inlet.  ‘S’ plugs have a maximum cable diameter of 18mm; ‘L’ plugs have a maximum cable diameter of 25mm.  You may find that your 32A 3P cable will fit in the smaller plug, in which case you can order the ‘3P S’ option.

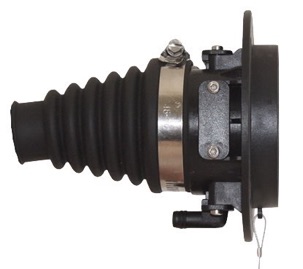

The socket is designed for use in EVs as the car-side charging connection and will accept a compatible, Type 2, FEMALE plug.  It has a plastic, tethered, ‘bayonet-style’ twist-on dust cap.  It does not contain any illumination LEDs but has provision for fitting them behind the red and green lenses. It comes with 4 x stainless steel M5 x 15mm Countersunk hex-drive bolts, washers and nyloc nuts.


The socket alone can be ordered in 1 phase ‘1P’ or 3 phase ‘3P’ options - and are therefore supplied with L2 and L3 pins missing (blanks supplied) or al 3 L pins, respectively.  t can also be ordered with or without 1 or 3 phase, 16A (2.5mm2 CSA) or 32A (6.0mm2 CSA) copper wire tails pre-attached using an 8T hydraulic crimper.  Standard cable lengths are 1, 3, & 5m.  These come in a flexible orange conduit, 20mm in diameter (O/S dimension).  Longer lengths may be ordered by contacting EVBitz.uk (see below).  Weight With Cable: See purchase button drop-downs.



All pins/sleeves have a conductor entry hole of 4mm diameter, large enough for 10mm2 (60A-70A) conductors, maximum.


NOTE:  The pins and sleeves in these plugs require crimping with a suitable (high power) crimper.  An 8T hydraulic crimper can be purchased on eBay for ~£30 (example image below - I make no recommendations for this particular item).


IP54 rated.

Type 2 Electric Vehicle Charging MALE Plug and Socket - 63A(max)


All Prices Include VAT & UK Postage

Non-UK Orders must pay for additional postage

Type 2 Male Plug

Type 2 Male Socket + 1P Tails

Type 2 Male Socket + 3P Tails

Options:

Options:

Type 2 Male Socket

Options:

Options:

(Click on the photo for an enlarged view)

(Click on the photo for an enlarged view)

Approximate Dimensions (mm):-


Plug:- 215 L, 53 H, 50 W.  340g (with dust cap on). With Cable: see here.

Socket:- 160L, 110H & W.  425g.  With Cable: See drop-down payment button.

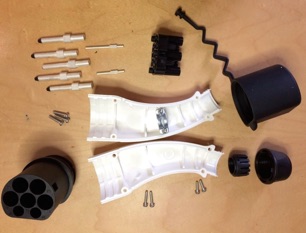

The plug and socket can be disassembled with a T15 Torx driver (bit/blade needs to be at least 35mm long due to the depth of the head of some screws within the plug/socket body).  This bit may be ordered with the plug and/or socket (excluding cabled options) at £2 extra.


Free myHermes/Collect+/Royal Mail/ParcelForce postage is included which usually takes 2-3 days within mainland UK (excluding weekends) - but may take as much as 7 days.



(* UK orders only - ex-UK orders must have extra postage added - see the ‘Shipping Information’ page)

eBay 8T Hydraulic Crimper

T2 Male Plug Spares

Pins & Dust Cap

T2 Male Socket Spares

Contacts/Pins

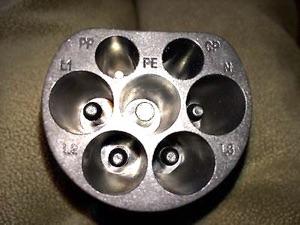

PE (earth) Pin

(Same for both plug and socket) on left

L1/L2/L3/ N Pin

(Same for both plug and socket) on right

Torx T10/T15 Bit

Type 2 Male Plug

Type 2 Male Socket

Before Ordering Spare Plug/Socket Contacts:

Please read the notes in the paragraph above.


Please Note: Prices are for a SINGLE PIN.

All power (L, N  & E) pins have 6mm2 (4mm diameter) conductor entry size

All signal pins (PP & CP) pins have 0.5mm2 (1mm diameter) conductor entry.

The ‘New Tethered Cap’ (tethered to a circular plastic moulding) simply snaps into place after the existing one is popped off the main body of the socket - use a wide flat bladed screwdriver.

Type 2 Duosida Electric Vehicle Charging Plug and Socket Spare Parts - Male


All Prices Include VAT and UK P&P*
