ADP9/10 - Blue Commando (CEE) or Schuko to 13A Socket


All Prices Include VAT & UK Postage

Non-UK Orders must pay for additional postage

This adaptor will allow you to charge EVs that come as standard with a UK so-called “granny cable” AKA a “Mode 2” charging cable from a standard 16A and 32A blue Commando (AKA CEE or caravanning/camping/marine) socket as well as European ‘Schuko’ sockets.


A “granny cable” is a cable with a 13A plug on one end, a J1772 (Type 1) or Type 2 (female) plug on the other and a ‘brick’ (control box) between the two specifically designed for charging EVs.  It should properly be referred to as a ‘Mode 2 Charging Cable’ or ‘portable EVSE’ (pEVSE).  Generally these only supply a maximum of 10A charging current which equates roughly to about 6 miles of added range per hour of charging.


It will also work with other EVs where the charger lead is terminated with a 13A socket eg Twizy, Vectrix etc, - anything that has a 13A plug on it.


Contact Us...


Email: sales@EVBitz.uk  -  Landline: 01951 200197  -  Mob: 07788 138413


2 Hall Cottage

Isle of Colonsay

Argyll

PA61 7YT

Scotland


UK Registered Private Limited Company

I am not VAT registered so ALL PRICES INCLUDE VAT!

Plug Options:

Standard Socket                                      Masterplug Socket

CEE and 13A Cables and Adaptors

This 240AC mains extension cable is a specially heavy-duty one using 2.5mm2 CSA conductors designed to be used at a *continuous* 10A, unlike standard domestic extension leads which generally only use 1.5mm2 conductors and are only intended for relatively light and intermittent use.


It uses Permaplug plug and trailing socket and tough and very flexible HO7-RNF cable rated for 23A continuous use.


It comes in 2 standard lengths:- 5m & 8m.


The extra thickness of metal used in the cable conductors and plug and socket components allows any heat build-up in the plug/socket interface to be much more effectively dissipated preventing potentially dangerous over-heating scenarios such as this:-

Length Options:

The adaptor will not increase the 10A maximum current that the Granny cable will allow to be drawn from the mains.


It comes in 3 standard lengths:- 0.2m, 3m, & 5m.


All versions also use 2.5mm2 cable to avoid overheating issues that will almost certainly occur with regular smaller ampacity cables due to the prolonged relatively high current drawn by the EV during charging.  The smaller (typically 1.5mm2) conductors used in regular extension cables simply cannot transfer the heat away from plug/socket contacts quickly enough to prevent overheating.

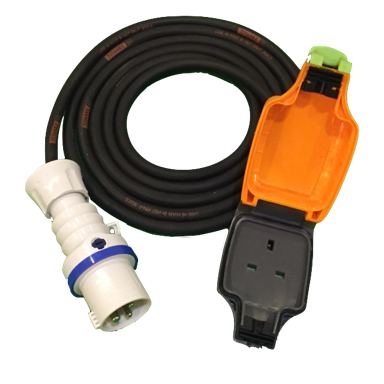

All 3 variants can be ordered with either a plain socket or an IP54 MasterPlug weatherproof socket as shown above (orange).


To order, select the Plug required from the Plug Options dropdown and add it to your cart.  Then do the same for the length and socket options before checking out (not forgetting to add extra postage - if needed - for expedited delivery or for delivery addresses outside of the UK.

EXT-13A - Heavy-Duty Extension Leads



13A Plug  to 13A Socket


All Prices Include VAT & UK Postage

Non-UK Orders must pay for additional postage

Free Royal Mail/ParcelForce postage is included* which usually takes 3-4 working days from the day of dispatch within mainland UK - but, due to our location, may take as much as 7 days.



(* UK orders only - ex-UK orders must have extra postage added - please see the ‘Shipping Information’ page)

8m Option

Schuko to Standard Socket

Length Options:

Socket Options:

Avoid this!!!
