10/16/32A, 5m, 230VAC Portable ‘Mode 2’ EVSE Type 1 & 2 Versions
All Prices Include VAT & UK Postage
Non-UK Orders must pay for additional postage
Comes with FREE cable carry bag!
(Normal price - £10)
The Type 2 version is compatible with all EU EVs eg:-
All EU Tesla Versions (except the Roadster)
All EU BMW EVs and Plug-in Hybrids
All EU VW EVs and Plug-in Hybrids
EU Renault Zoe
All EU Volvo EVs and Plug-in Hybrids
Porsche Panamera PHEV
All EU Mercedes Benz EVs and Plug-in Hybrids
Daimler Smart FourTwo ED
Chevrolet Spark
All EU Audi EVs and Plug-in Hybrids
BYD E6
Kia Optima (but not Soul which is Type 1)
All EU Mahindra EVs and Plug-in Hybrids
Hyundai Ioniq PIH & EV
The Type 1 versions are compatible with all Japanese and USA-built EVs (except Teslas) eg:-
All Nissan EVs
Mitsubishi i-MiEV / Outlander
All Vauxhall EVs and Plug-in Hybrids
Citroen C-Zero
Peugeot Ion
All Toyota EVs and Plug-in Hybrids
Renault Kangoo / Fluence
Kia Soul (not Optima - Type 2)
Fisker Karma
Ford C-MAX Energi / Ford Focus EV
Lightning EV
Mercedes Vito E-Cell Van
MIA Electric
Toyota Prius PHEV
This 5m long electric vehicle charging cable, properly referred to as a 'Mode 2 portable EVSE' (EVSE standing for 'electric vehicle service equipment') conforms to IEC 62196 and SAE J1772.
There are 2 deferent types. The ‘Khons’ version has a display and is capable of varying its output when first connected to the mains by simply shaking the box. Consequently, it is more expensive than the second type (further down this page), the ‘Duosida’, which does not have a display, only status lights, and has a fixed 10A output and is therefore a bit cheaper.
The display-equipped Khons version is available in the following formats:
1/ 10A, Type 1, 13A UK mains plug
2/ 10A, Type 2, 13A UK mains plug
3/ 16A, Type 1, CEE (blue ‘commando’) mains plug
4/ 16A, Type 2, CEE (blue ‘commando’) mains plug
5/ 32A, Type 1, CEE (blue ‘commando’) mains plug
6/ 32A, Type 2, CEE (blue ‘commando’) mains plug
The non-display Duosida type is available in the following formats only:
1/ 10A, Type 1, 13A UK mains plug
2/ 10A, Type 2, 13A UK mains plug
The 10A versions are intended for use in charging compatible electric vehicles from a standard UK 3 pin, 13A (BS1363) socket but it is internally limited to a maximum current output of 10A to prevent the 13A plug and socket from potentially dangerous overheating - something which some other pEVSEs ignore. In the case of the Khons pEVSE, the current output can be easily further limited to 8A if required by the user by simply shaking the unit within 60 seconds of applying mains power. The Duosida version output is fixed at 10A only.
The 16A Khons version is intended for use with a 16A CEE socket which are available Europe wide at camping grounds, marinas and industrial premises. Current output can be easily further limited to 10A or 8A if required by the user by simply shaking the unit within 60 seconds of applying mains power.
The 32A Khons version is intended for use with a 32A CEE socket which are generally available in industrial and/or farming environments and are switchable, again by shaking after applying mains power, between 32A, 16A and 8A.
All devices are designed to the highest standards using well-designed components.
All pEVSEs come with a free, padded and robust carry bag.

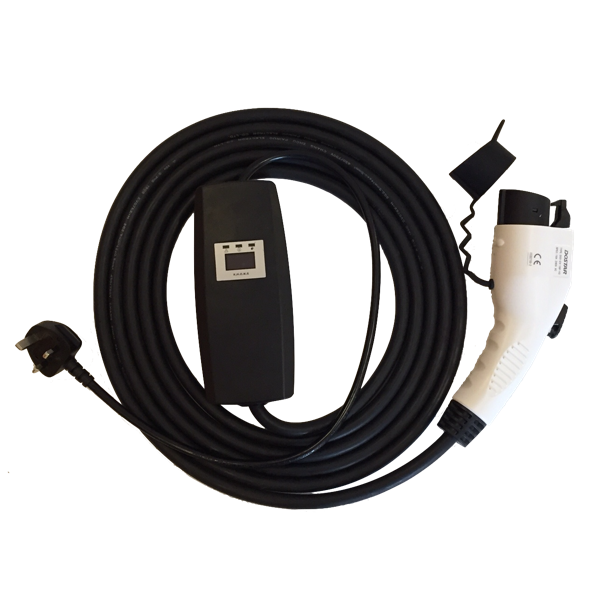

Kohns pEVSE Features:-
•Designed for 32A supply, so very long life.
•Easy to use (see instructions below)
•Change charging current between 8 and 10 (& 16 if applicable) amps by simply shaking the EVSE housing (remembers last setting)

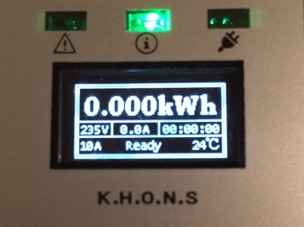

•Clear and useful LED display showing:-
•Energy used since last connected to mains
•Line voltage (actual in real time)
•Charging current (actual in real time)
•Time since last connected to mains in H:M:S
•Charging Current (set)
•EVSE Status
•EVSE temperature in degrees C
•Built-in hanging loop
•Robust industry leading Dostar, car-side, charging plug
•Rugged but light-weight EVSE housing
•Moulded-on UK BS1363 plug (as applicable)
•IP65 dust and water resistance
•CE Marked
or...
10A
16A or 32A
If your EV/PIH is not listed, please go here for up-to-date information.
(Type 1 plug shown)

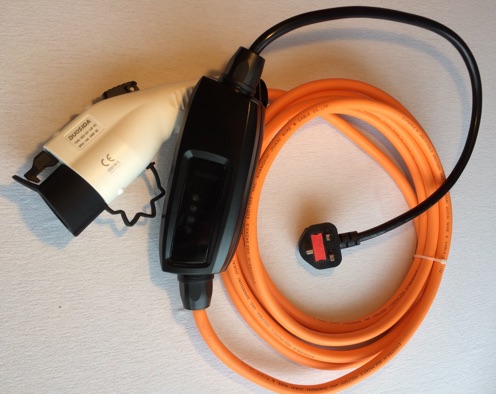

Duosida pEVSE Features:-
•input/output 220 - 240v AC 50hz 10amps
•IP55 environmental protection
•-30 to + 50 degrees Celsius operating temp
•Orange EV-side cable, 3G2.5mm + 2G0.5mm
•UK plug to IEC62196 / J1772 (Type 1 or Type 2)CE and TUV certified
Free myHermes/Collect+/Royal Mail/ParcelForce postage is included which usually takes 2-3 days within mainland UK (excluding weekends) - but may take as much as 7 days.
(* UK orders only - ex-UK orders must have extra postage added - see the ‘Shipping Information’ page)
Duosida 10A pEVSE
(without display)
Comes with FREE cable carry bag!
(Normal price - £10)
Options:
Khons 16A or 32A pEVSE
(with display)
