These holsters are plastic (PA6 - Nylon) dummy sockets for Type1 (J1772 or Yazaki) and Type 2 (Mennekes) tethered electric vehicle charger plugs designed to allow the plugs to be conveniently, neatly and safely stored when not in use. It also ensures that dust and rain are kept away from the plug’s contacts when not in use thereby prolonging their life and preventing poor contact and therefore unnecessary heating of the plug/socket when charging.
‘Add to Cart’ Payment Button Options Explained:-
‘WS’ = Wood Screws
‘N&B’ = Nyloc Nuts & Bolts (and washers)
‘PO’ = Part Order ie Bought as part of a larger order, hence the price discount.
‘BA’ = Bought Alone - ie ordered on its own, and postage not shared with other items, hence more expensive.
Type 1
The Type 1 holster has 4 x 'No 10' (5mm) countersunk fixing holes spaced at 53mm horizontally and vertically allowing it to be easily and securely mounted to a wall etc. It could also be attached to a wedge-shaped block (not supplied) to adjust the angle of the J1772 plug when attached. Either 4 x stainless steel, pozidrive fixing screws & rawlplugs OR 4 x 4mm c/s machine screw, plain washer and nyloc nut are supplied with the holster.
Dims:- 73mm x 73mm x 38mm
M5 Fixing holes on 37.5mm radius
Weight (inc screws):- 60g

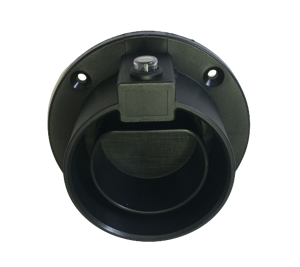

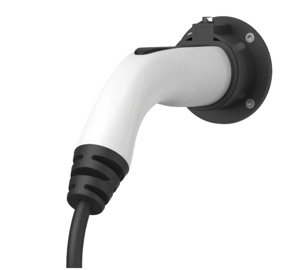

Type 2
...4 x 'No 8' (4mm) countersunk fixing holes spaced at 60mm horizontally and vertically.
Either 4 x stainless steel, pozidrive fixing screws & rawlplugs OR 4 x 4mm c/s machine screw, plain washer and nyloc nut are supplied with the holster.
Dims:- 99mm x 41mm
M4.5 Fixing holes on 42.5mm radius
Weight (inc screws):- 120g
Price includes 2nd class RM (Type 1) or myHermes (Type 2) postage to mainland UK.
(* UK orders only - ex-UK orders must have extra postage added - see the ‘Shipping Information’ page)
