This plug and matching socket are designed for use in EV charging cables and will mate with any J1772 specified socket/plug.

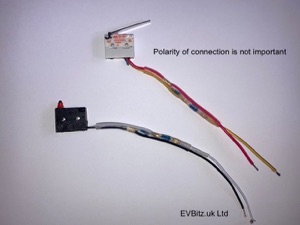

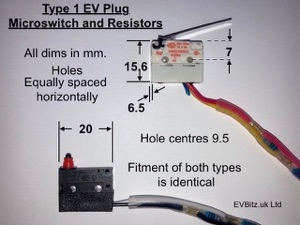

They are rated at 70A and therefore are suitable for 16 and 32 amp or higher current applications as per the IEC 61851-2001 / SAE J1772-2001 standard. The conductors should be crimped on into the pins using a heavy-duty (eg, hydraulic) crimper. The plug comes with the 2 resistors required for correct communication with the EV and these are pre-soldered to the integrated, water resistant microswitch.
A small padlock can be used (not supplied) to secure the plug to the car whilst charging. The padlock shackle must have a diameter of no more than 4mm.

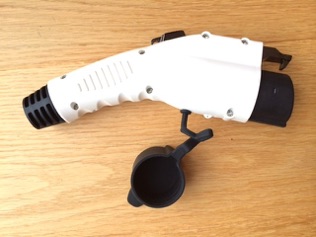

Plug Dimensions (mm):- 240 L, 75 H, 55 W (all with dust cap on) Weight:- 400g

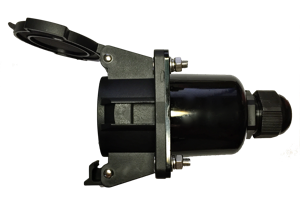

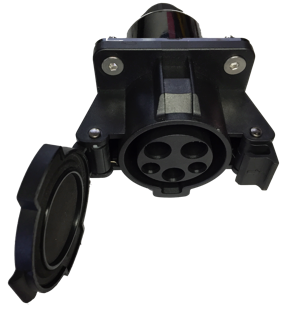

Socket Dimensions(mm):- 120L, 70H x 70W Weight:- 245g

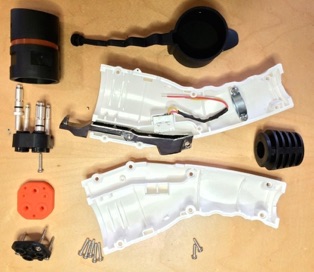

The plug can be disassembled with the following:-
1/ A T15 Torx driver bit (needs to be at least 35mm long),
2/ A T10 Torx driver bit and
3/ A ‘2.7mm Triangle’ security bit…
...all of which you may wish to order with your plug at a cost of £5 extra. Note:- the triangular bit is very difficult to find! The plug can be supplied with pre-attached cable in various configurations - see here as well as part of an EVSE kit - see here.
The socket can be disassembled with a T10 Torx driver bit, a No 2 Phillips screwdriver and a 3mm Allen key/hex driver. It can also be supplied with suitably current-rated, pre-attached wire tails in a flexible orange plastic conduit (see drop-down payment options).
IP54 rated.
Type 1 Electric Vehicle Charging Plug and Socket - 32A
All Prices Include VAT & UK Postage
Non-UK Orders must pay for additional postage
Type 1 - J1772 Plug
In Stock
Type 1 - J1772 Socket
In Stock- £55 inc P&P
2.7mm ‘Triangle’ Bit
Type 1 Socket + Wire Tails
In Stock:
Torx T10/T15 Bit
Options:
(Click on this photo for an enlarged view)
(Click on this photo for an enlarged view and dimensions)
Options:

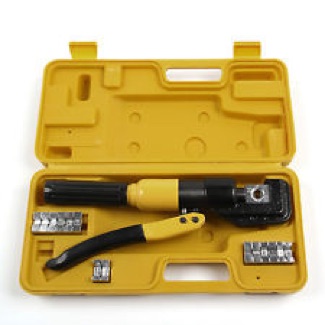

NOTE: The pins and sleeves in these plugs require crimping with a suitable (high power) crimper. An 8T hydraulic crimper can be purchased on eBay for ~£30 (example image left - I make no recommendations for this particular item).
Free myHermes/Collect+/Royal Mail/ParcelForce postage is included which usually takes 2-3 days within mainland UK (excluding weekends) - but may take as much as 7 days.
(* UK orders only - ex-UK orders must have extra postage added - see the ‘Shipping Information’ page)
T1 Plug Spares
Pins & Dust Cap
T1 Socket Spares
In Stock
In Stock

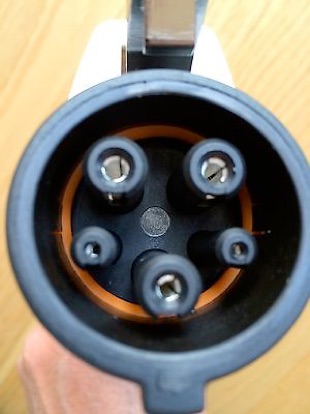

PE (Earth), Line/Neutral and CP/PP Pins
(left to right)
CP/PP, Live/Neutral & PE (Earth) Pins
(left to right)
Before Ordering Spare Plug/Socket Contacts:
Please read the notes in the paragraph above.
Please Note: Prices are for a SINGLE PIN.
All power (L, N & E) pins have 6mm2 (4mm diameter) conductor entry size
All signal pins (PP & CP) pins have 0.5mm2 (1mm diameter) conductor entry.

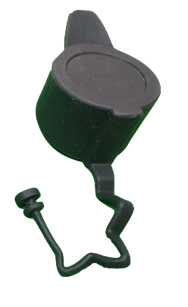

Dust Cap
