Cord Length: Free end, 1.5m(4.92ft), 3m,(9.84ft)

Meet SAE J1772 2009 (Type 1) North American standard, UL Rated

Attractive and comfortable shape and easy to use

Protection class: IP54(in mated conditions)

Parameters

Rated current: 15A~16A

Working voltage: 120 ~ 240V AC

Insulation resistance: > 1000M Ω (DC 500V)

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact impedance: 0.5m Ω Max

Vibration resistance: Meets JDQ 53.3 requirements

Working temperature: -30°C ~ + 50°C

CE & UL Approval

Materials

Shell Material: Thermo Plastic (Insulator inflammability UL94 VO)

Contact bush: Copper alloy, silver plating

Sealing gasket: rubber or silicon rubber

Switch hook: Zinc Alloy

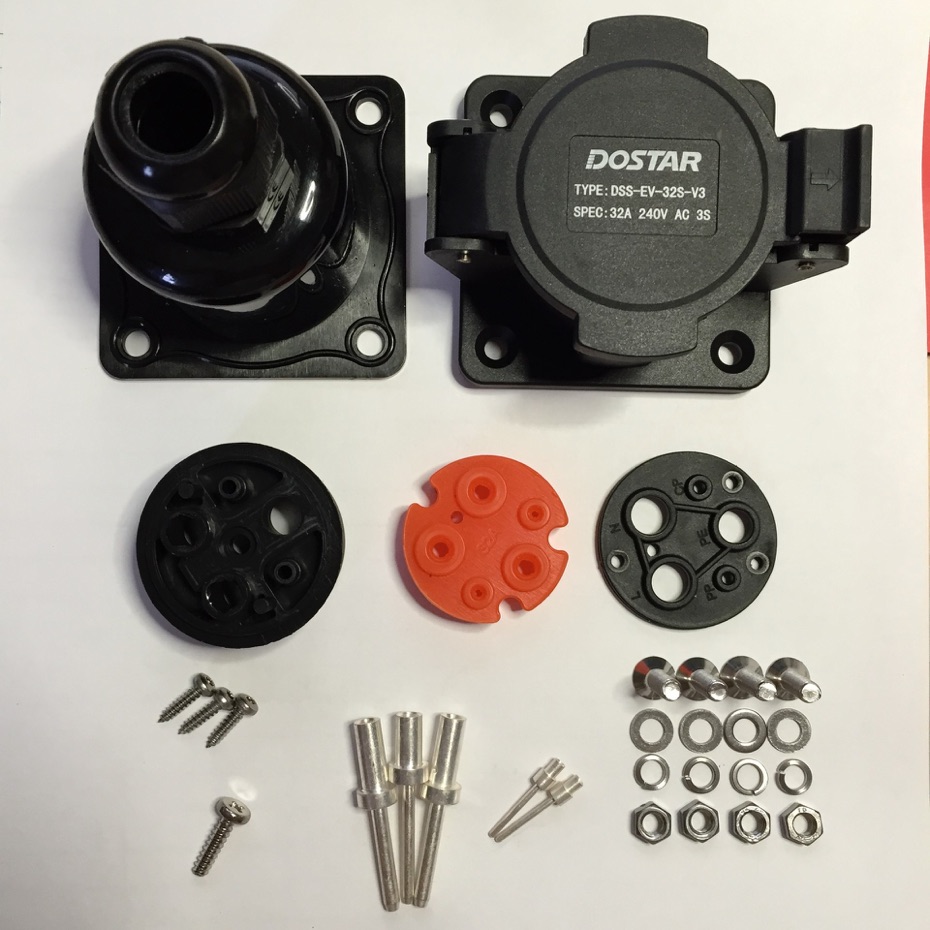

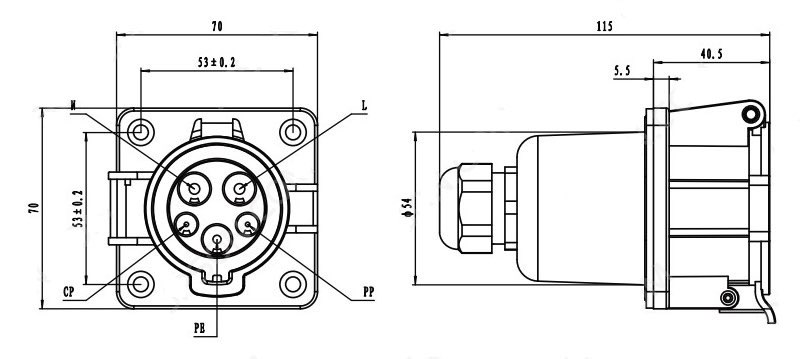

Type 1 Socket

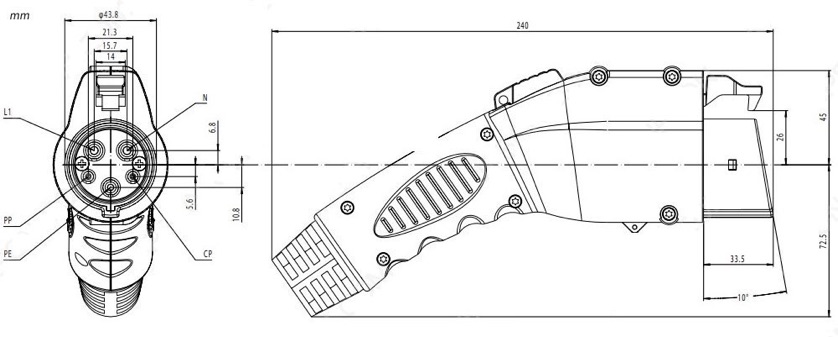

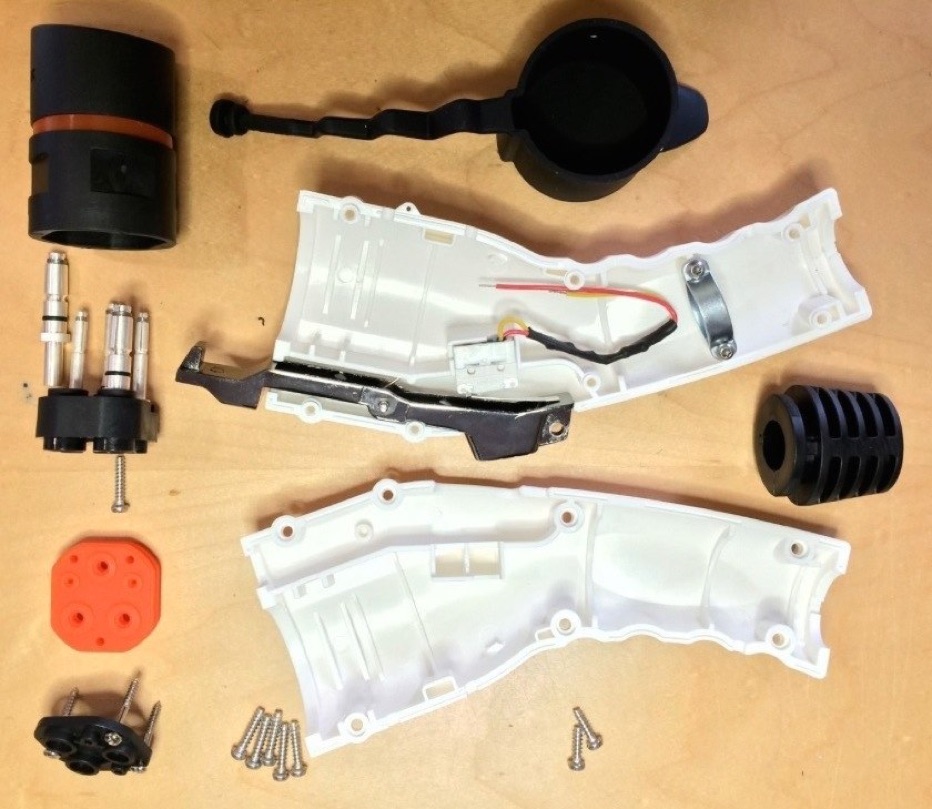

Type 1 Plug

Meets SAE J1772 2009 (Type 1) North American standard, UL Rated.

Attractive and comfortable shape and easy to use

Protection class: IP54 (when mated).

Parameters

Rated current: 63A

Working voltage: 120 ~ 240V AC

Insulation resistance: > 1000M Ω

Terminal temperature rise: <50K

Max voltage: 2000V

Contact impedance: 0.5m Ω Max

Vibration resistance: Meet JDQ 53.3 requirements

Working temperature: -30°C ~ + 50°C

Materials

Shell Material: Thermo Plastic (Insulator inflammability UL94 VO)

Contact Pin: Copper alloy, silver or nickel plating

Sealing gasket: rubber or silicon rubber
