Electrical Features
Type (waveform of the earth leakage sensed): A

Thermo-magnetic release characteristic: C

Rated current In : 16 or 32A

Poles: 1P+N

Rated voltage Ue: 230/240V

Rated sensitivity I?n: 0.01, 0.03, 0.1, 0.3A

Rated residual making and breaking capacity I?m: 500A

Rated short-circuit capacity lcn: 3,000A

Break time under I?n :? 0.1s

Rated frequency: 50/60Hz

Rated impulse withstand voltage (1.2/50)Uimp: 4,000A

Dielectric TEST voltage at ind. Freq. for 1min: 2kV

Insulation voltage Ui: 300V

Pollution degree: 2


Mechanical Features
Electrical life: 2,000

Mechanical life: 4,000

Contact position indicator: Yes

Protection degree: IP20

Ambient temperature: -5...+40C

Storage temperature: -25...+70C


Installation

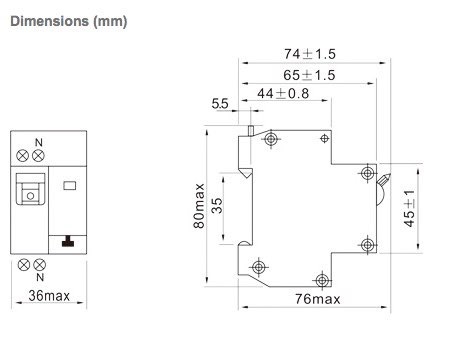

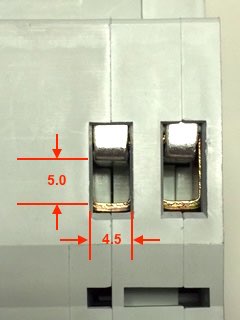

Terminal size top/bottom for cable: 10mm2   (4.5mm x 4.5mm)

Terminal size top/bottom for busbar: 10mm2   (4.5mm x 4.5mm)

Tightening torque: 1.2 Nm

Mounting: DIN rail EN 60715 (35mm) by means of fast clip device



16/32A 2 Pole RCBO Specifications

EVSE_Components.html

Terminal Type:

Electrical Features
Type (wave form of the earth leakage sensed): A

Thermo-magnetic release characteristic: B

Rated current In MCB+add-on RCD block: 16 or 32A

Poles: 4P (3P+N)

Rated voltage Ue: 240/415V

Rated sensitivity IЎn  MCB+add-on RCD block: 0.03, 0.1, 0.3A

Rated residual making and breaking capacity IЎm: 500A(InЎ40A) 630(InЈ40A)

Rated short-circuit capacity lcn: 4,500A

Break time under IЎn: Ў0.1s

Rated frequency: 50/60Hz

Rated impulse withstand voltage (1.2/50)Uimp: 4,000V

Dielectric TEST voltage at ind. Freq. for 1min: 2kV

Insulation voltage Ui: 500V

Pollution degree: 2


Mechanical Features
Electrical life: 2,000

Mechanical life: 4,000

Protection degree: IP20

Ambient temperature: -5C...+40C

Storage temperature: -25C...+70C


Installation
Terminal size top/bottom for supply cable: 25mm2   (7 x 7mm). Type as 2 pole version (above)

Terminal size top/bottom for busbar/load cable: 10mm2 (4.5x4.5mm). Type as 2 pole version (above)

Tightening torque: 2.0 Nm

Mounting: DIN rail EN 60715 (35mm) by means of fast clip device

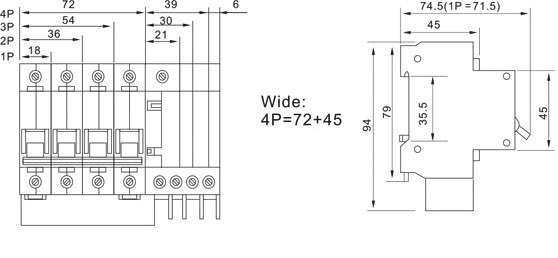

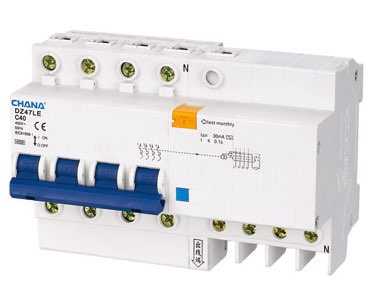

16/32A 4 Pole RCBO Specifications
